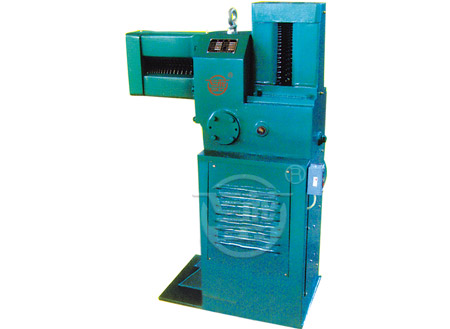

Type ZJS16 Pointing Machine

Application Range：

Pointing machine is the auxiliary equipment drawing machine, Used in all kinds of non-ferrous metal wire wear before rolling tip.

Performance Features：

1. Rack control box: Operating height 900mm，Frame around the structure closed，Motor control box with vents，Device is fixed on the ground。

2. speed reducers ：Motor direct reducer，Gearbox with main roll links drive,

3. Roll diameter Ф120 mm， 9CrSi special materials,

The vacuum quenching ，Surface hardness≥ HRC65

4. Lubrication Equipment：grease，Manual oil filling。

5. Roll direction：Adopt double roll，Horizontal and vertical。

6. Lifting Requirements：With the rings, facilitate hoisting.

7. Body using a special casting ductile，Overall a forming, strong and durable，

8. Compact design, low noise, reliable performance, beautiful appearance.

Technical Parameters：
