Application Range：
mainly for welding of high, medium and low carbon steel wire, Stainless steel wire, alloy steel wire and non-ferrous metals copper and aluminum wire, nickel alloy wire and so on.
Performance Features：
1. clamp weld line way is more convenient, the welding line operation form is eccentric compression type, thread clamp is tight ，Applicable to small and medium-sized welding wire diameter，Ф1.5 - Ф 6.5 between the welding effect is best.

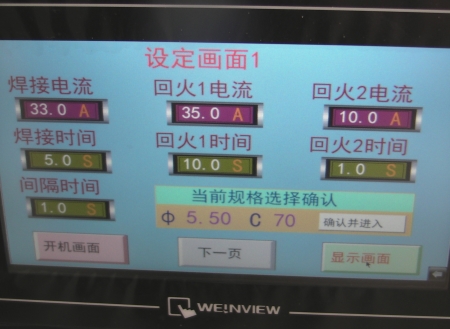

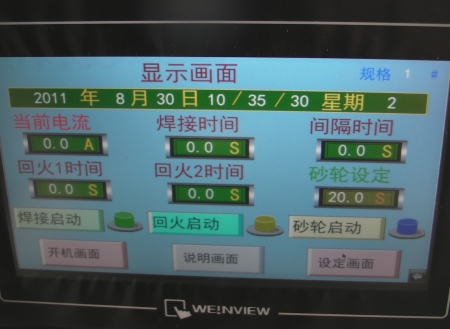

2. PLC control system regulates the current stable, automatic welding.

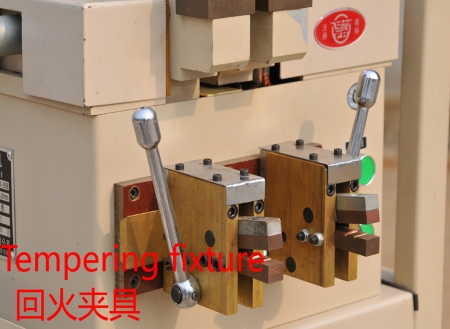

3. Equipped with secondary tempering, temper is easy to operate, Clamping force is big。

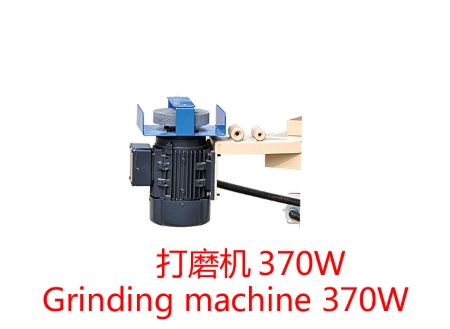

4. Configuration grinding motor, Punched disc cutter，24V Low-voltage control system，high safety performance.
5. Mobile convenience of using four-wheel universal mobile ,mobile and flexible ,easy to operate.
| Model Parameters | Unit | DS—III(PLC)2KVA | DS—III(PLC)3KVA | DS—III(PLC)5KVA | DS—III(PLC)10KVA |
| Voltage | V | 380/415/440 | 380/415/440 | 380/415/440 | 380/415/440 |
| Power | KVA | 2 | 3 | 5 | 10 |
| Secondary Voltage | V | 0—2.86 | 0—3.2 | 0—3.46 | 0—4.6 |
| Welding Diameter | MM | 1.5—6.0 | 1.5—6.5 | 2.0—7.0 | 2.0—8.0 |
| Frequency | HZ | 50/60 | 50/60 | 50/60 | 50/60 |
| Phase Number | 1 | 1 | 1 | 1 | |
| Annealing Length | MM | 50—200 | 50—200 | 50—200 | 50—200 |
| Dimensions | MM | 800*750*1000 | 800*750*1000 | 800*750*1000 | 800*750*1200 |
