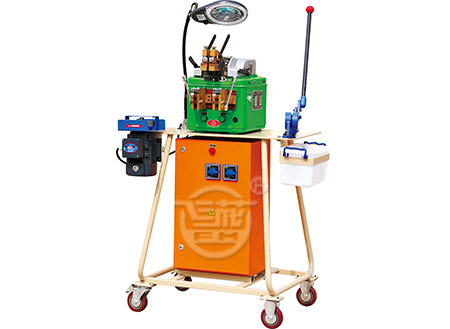

Type DS110-2 Butt Welding Machine

Application Range：

mainly for welding of high, medium and low carbon steel wire, Stainless steel wire, alloy steel wire and non-ferrous metals copper and aluminum wire, nickel alloy wire and so on.

Performance Features：

1. clamp weld line way is more convenient, the welding line operation form is eccentric compression type, thread clamp is tight ，for large pull diameter welded，Ф6.5mm the welding effect is best.

2. Stall switch control system regulates the current stable, automatic welding

3. Equipped with secondary Annealing, In order to not easily broken when grinding head welding line.

4. Annealing is easy to operate, Clamping force is big。

5. Configuration grinding motor, Punched disc cutter，24V Low-voltage control system，high safety performance.

6. Mobile convenience of using four-wheel universal mobile ,mobile and flexible ,easy to operate.

Technical Parameters：

Model parameters	unit	DS110-2
voltage	V	220/110/240
power	KVA	3
Secondary voltage	V	1.2-3.2
Welding diameter	MM	Steel 0.5-5.0 Copper/aluminium 0.9-2.5
frequency	HZ	50/60
Phase number		1
Annealing length	MM	50-210
dimensions	MM	8007501200
